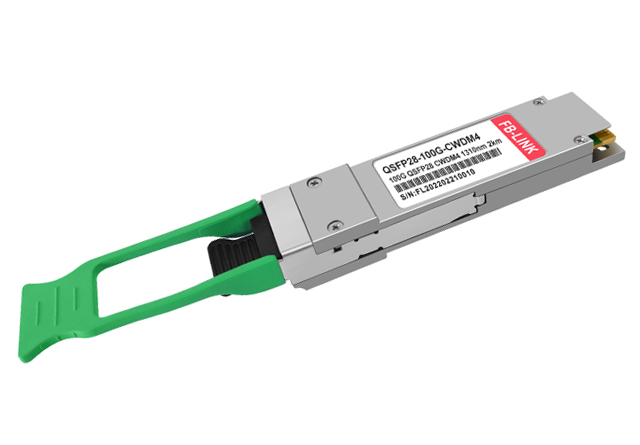

100G QSFP28 CWDM4 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP MSA, IEEE 802.3ba and CWDM4 MSA.The optical transceiver is RoHS compliant.
Hot-pluggable QSFP28 form factor
Supports 103.125Gb/s aggregate bit rate
Power dissipation <3.5W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 2km on single Mode Fiber (SMF)
Aligned with IEEE 802.ba
4x25G NRZ DFB-based 1310nm transmitter
4x25G NRZ retimed 100GAUI-4 electrical interface
Duplex LC receptacles
I2C management interface
RoHS compliant
