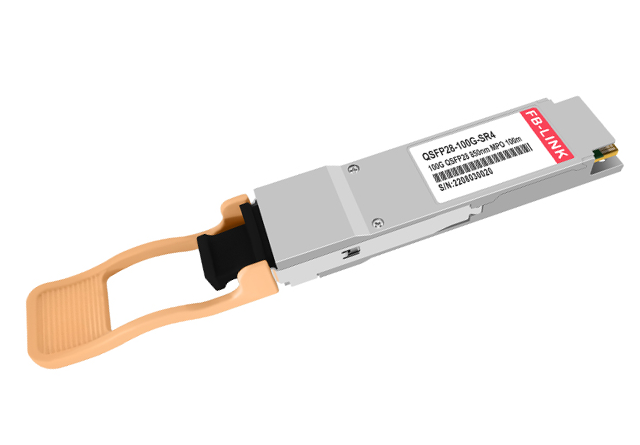

100G QSFP28 SR4 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 100m of Multi mode fiber. They are compliant with the QSFP MSA and IEEE 802.3ba. The optical transceiver is RoHS compliant.The product supports immersion liquid cooling applications.
Hot-pluggable QSFP28 form factor
Supports 103.125Gb/s aggregate bit rate
Power dissipation <2.5W
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on multi Mode Fiber (MMF)
Aligned with IEEE 802.ba
4x25G NRZ VCSEL-based 850nm transmitter
4x25G NRZ retimed 100GAUI-4 electrical interface
MPO-12 receptacles
I2C management interface
RoHS compliant
