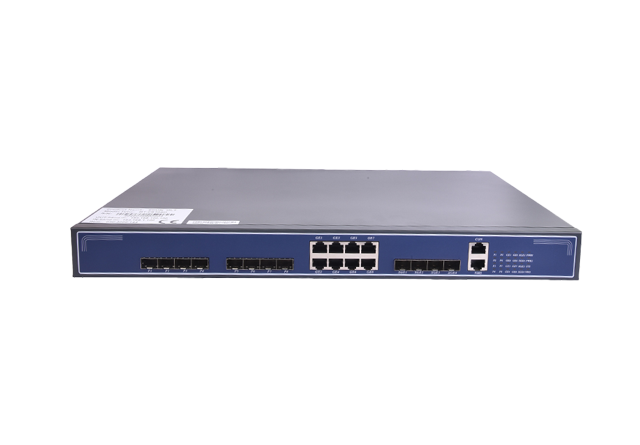

8 PON Port EPON OLT

EPON OLT is a 1U standard rack-mounted equipment complying with IEEE802.3ah, YD / T 1475-2006 and CTC 2.0、2.1 and 3.0.It has flexible, easy to deploy, small size, high performance and other characteristics. The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television "triple play", the power consumption information collection, video surveillance, networking, private network applications and other applications.

Parameters

Hardware Features

Business Interface

Supply 8 PON Port



4SFP 10GE slots for Uplink

10/100/1000M auto-negotiable,RJ45:8pcs for Uplink

Management Ports

Provide 10/100Base-T RJ45 out-band network management port

It can manage the in-band network through any GE uplink port

Provide local configuration port



Provide 1 CONSOLE port

Data exchange

3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching

LED Light

RUNPW instructions system runningpower working status

PON1 to PON8 instructions 8 pcs PON port LINK and Active status

GE1 to GE8 instructions 8 pcs GE uplink’s LINK and Active status

XGE1 to XGE4 instructions 4 pcs 10GE uplink’s Link and Active status

Power Supply

220VAC AC: 100V~240V,50/60Hz  DC:-36V~-72V

Power Consumption 50W

Weight

4.6 Kg

Working Temperature

055℃

Dimension

300.0mm(L)* 440.0mm(W)* 44.45mm(H)

EPON Function

EPON Standard

Comply with IEEE802.3ah,YD/T 1475-200 and CTC 2.0 2.1 and 3.0 standard

Dynamic bandwidth allocation

(DBA)

Support fixed bandwidth, guaranteed bandwidth, maximum bandwidth, priority, etc. SLA parameters;

Bandwidth granularity 64Kbps

Security Features

Support PON line AES and triple churing encryption;

Support ONU MAC address binding and filtering;

VLAN

Support 4095 VLAN additions, transparent transmission, conversion and deletion;

Support 4096 VLAN additions, transparent transmission, conversion and deletion;

Support VLAN Stacking (QinQ)

MAC address learning

Support 32K MAC addresses;

Hardware-based wire-speed MAC address learning;

Based on port, VLAN, link aggregation MAC restrictions;

Spanning Tree Protocol

Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol

Multicast

Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;

Support IGMP v1/v2 and v3

NTP protocol

Support NTP protocol

Quality of  Service(QoS)

Support 802.1p priority queue scheduling;

Support SP, WRR or SP + WRR scheduling algorithm;

Access Control Lists

(ACL)

According to the destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet frame type, IP precedence, IP packets carried protocol type ACL rules set;

Support the use of the ACL rules for packet filtering;

Support Cos ACL rule using the above settings, IP priority setting, mirroring, speed limit and redirect the application;

Flow Control

Support IEEE 802.3x full-duplex flow control;

Support port speed;

Link Aggregation

Support 8 port aggregation group, each group supports 8 member ports

Port Mirroring

Support the port mirroring of uplink interfaces and PON port

Log

Support  by the alarm log output level shield;

Support for logging output to the terminal, files, and log server

Alarm

Support four alarm levels (severity, major, minor, and warning);

Support 6 alarm types (communication, quality of service, processing error, hardware equipment and the environment);

Support alarm output to the terminal, log and SNMP network management server

Performance Statistics

Performance statistics sampling time 1 ~ 30s;

Support the 15 minutes performance statistics of uplink interfaces ,PON port and ONU user port

Administration  maintenance

Support OLT configuration save, support restore the factory settings;

Support OLT online upgrade;

support ONU offline service configuration and automatically configure ;

Support ONU remote upgrade and batch upgrade;

Network management

Support local or remote CLI management configuration;

Support SNMP v1/v2c network management, support band, in-band network management;

Support the standard of broadcasting industry "EPON + EOC" SNMP MIB and support auto-discovery protocol EoC headend (BCMP);

Support WEB config mamagement

Open interfaces for third-party network management;


Features

Support Dynamic Bandwidth Allocation (DBA),the bandwidth granularity 64Kbps;

Support ONU auto-MAC binding and filtering, support the ONU offline business configuration and automatically configure;

Support 4096 VLAN additions, transparent transmission and conversion, support VLAN stacking (QinQ);

Support 32K MAC’s line speed learning and aging, support MAC address restriction;

Support IEEE 802.1d (STP), 802.1w (RSTP) and MSTP Spanning Tree Protocol;

Support IGMP v1/v2 Snooping and Proxy, support CTC controllable multicast;

Support priority queue scheduling, support SP, WRR or SP + WRR scheduling algorithm;

Supports port speed, support packet filtering;

Support port mirroring and port trunking;

Provide logs, alarms and performance statistics;

Support  WEB Management;

Support SNMP v1/v2c network.
