PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.

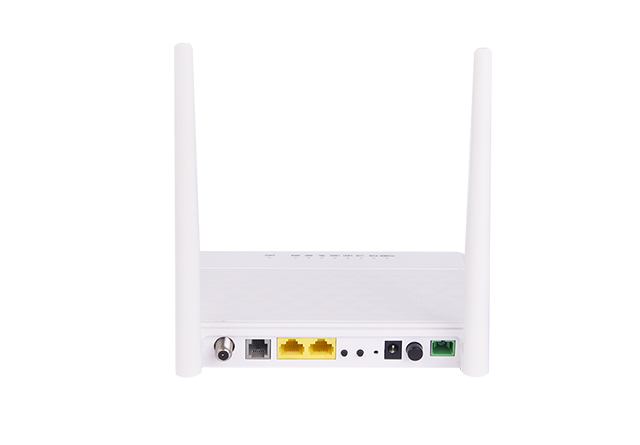

ONU is a user terminal device independently developed by xxx in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.It is an xpon product, which can adapt to EPON and GPON networks without replacing equipment and firmware.
Hardware Specifications | |
Size（L*W*H） | 120mm (L) ×90mm (W) ×35mm (H) |
Optical signal access | 1*GPON/EPON |
User interface | 2GE+2.4G/5.8G WLAN+1US |
Indicator light | POWER、PON、LOS、LAN1、LAN2 USB、2.4G、 5G、WPS |
Button | ower switch Button, Reset Button, WLAN Button, WPS Button |
Weight | 300g |
Power adapter input | 100V～240V AC，50Hz～60Hz |
PowerSupply requirement | 12V DC，0.5A |
Power consumption | <10w |
Working temperature | -10°C ~ +45°C |
Environment humidity | 5% ~ 95% (Non-condensing) |
PON Interface | |
Module type | SC/UPC |
Working wavelength | PON:up 1310nm，down 1490nm |
TX Optical power value | 0.5～4dBm |
RX Optical power sensitivity | Receiver sensitivity：-27dBm |
Transmission distance | 0～20km |
Transmission rate | GPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps |
Ethernet interface | |
Interface type | 4*RJ45 |
Interface parameters | 4*10/100/1000Mbps auto adaptive Ethernet interfaces |
Wireless | |
Working mode | IEEE 802.11 b/g/n/AC |
Antenna pattern | External 2*2T2R External |
Antenna gain | 5dBi |
Wireless bandwidth | Support 20MHz/40MHz/80MHz |
Interface rate | 2.4G WLAN：Maximum rate 300Mbps 5.8G WLAN：Maximum rate 866Mbps |
SSID | Up to 4 SSID broadcasts are supported |
Support EPON/GPON mode and switch mode automatically
GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
GPON:8 T-CONTs,32 GEM Ports
Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
Support PPPoE/ Static IP/ DHCP
Bi-directional FEC
Support IPv4, IPv6 and IPv4/IPv6
Support firewall level Settings, support based on URL/MAC/ IP/address frame filtering
Support multicast IGMP v2 proxy/ snooping, support MLD proxy/snooping
Qos supports PQ, WRR, and CAR queue scheduling
Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface，,2T2R external antenna, support multiple SSID Settings
Support DDSN, ALG, DMZ and UPN
