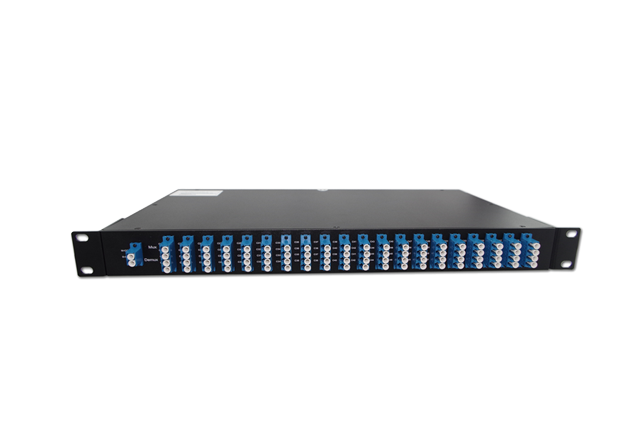

C-Band 50G 80CH DWDM AAWG

They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.

Parameters

Parameters

Notes

Specifications

Units

Min

Max

Channels


80

Ch

Channel Spacing


50

GHz

Reference Pass-band

Relative to ITU Grid

± 0.05

nm

ITU Frequency

On ITU grid in C-band

196.05

192.10

THz

ITU Wavelength

On ITU grid in C-band

1529.163

1560.606

nm

Center Frequency Accuracy

Maximum of the absolute deviation of the 3 dB center wavelength from ITU grid over all channels

-0.04

+0.04

nm

Insertion Loss

Maximum of the insertion loss across the ITU pass-band over all channels


7.0

dB

Insertion Loss Uniformity

Maximum insertion loss variance across all channels


1.5

dB

Ripple

Maximum of the loss variance across the ITU pass-band over all channels


0.7

dB

1dB Bandwidth

1dB from min Insertion Loss, full width, average polarization

0.18


nm

3dB Bandwidth

3 dB from min Insertion Loss, full width, average polarization

0.28


nm

20dB Bandwidth

20 dB from min Insertion Loss, full width, average polarization


0.7

nm

Adjacent Channel Isolation

Ratio of peak transmission to the maximum transmission over both adjacent pass-bands

25


dB

Non-Adjacent Channel Isolation

Ratio of peak transmission in channel pass-bands to maximum transmission over all non-adjacent pass-bands

30


dB

Total Crosstalk

Ratio of power in channel to power in all other pass-bands

20


dB

Polarization Dependent Loss

Maximum ratio of transmissions over all polarization states, over the ITU pass-band


0.5

dB

Return Loss


40


dB

Polarization Mode Delay (PMD)

In Reference Passband over all channels


1.0

ps

Chromatic Dispersion

In Reference Passband over all channels

-35

35

ps/nm

Optical Power

At common port


23

dBm


Features

Low Insertion Loss

High Isolation

Low PDL

Compact Design

Good channel-to-channel uniformity

The specifications serve for C-band 80

channels MUX/DEMUX Athermal

AWG module in DWDM system.
