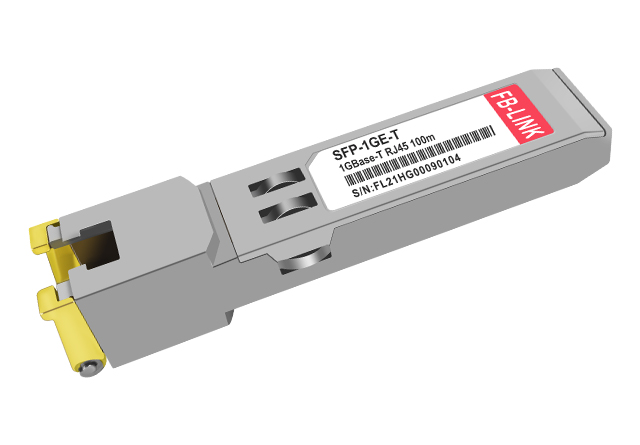

10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3 .The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
Up to 1.25 Gb/s bi-directional data links
Hot-pluggable SFP footprint
Low power dissipation(1.05W typical)
Compact RJ-45 connector assembly
Fully metal enclosure, for lower EMI
RoHS compliant and lead-free
Single +3.3V power supply
10/100/1000 BASE-T operation in host systems with SGMII interface
1.25 Gigabit Ethernet over Cat 5 cable
Case operating temperature：
Commercial: 0°C to +70°C
Extended: -10°C to +80°C
Industrial: -40°C to +85°C
