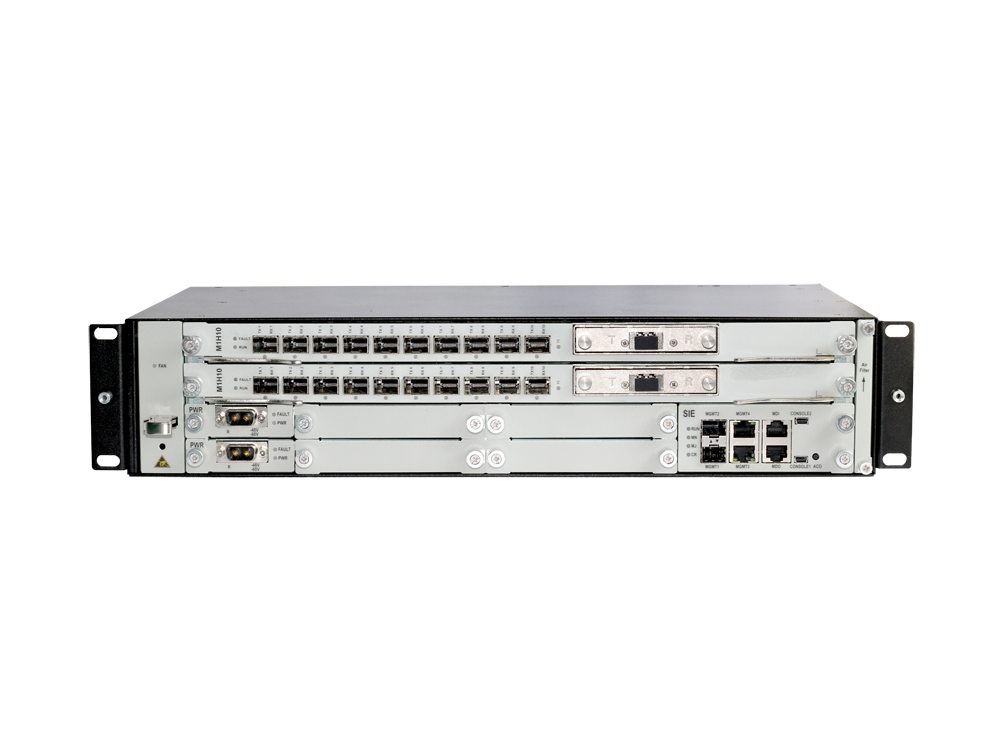

OTN2800-II is a 10G/100G OTN transport system, it is mainly used in metropolitan area for convergence and access, as well as data center interconnected transmissions. It supports electronic cross between cards, multi service particle scheduling and 10G/100G transmission, with rich management and protection functions. OTN2800-II has 2 slots for service board (service board supports 1+1 backup for cross board protection and control), 4 slots for WDM/EDFA board, 2 slots for power supply (dual-DC, dual-AC, or AC plus DC for optional), which improves the reliability and stability of system.
Board | Interface | Description |
M1H10 | 1*100G line side port (CFP) 10*10G client side ports (SFP+)
| The signal of client side (10GE, STM-64/OC-192) is mapped to ODU2/2e The signal of line side is demux from ODU4 to ODU2/2e and then connect to the client side 100G signal of system side supports G.709 Regular FEC or Soft-Decision FEC 10G OTU2/2e supports I.4 and I.7 EFEC, or G.709 regular FEC GCC0, GCC1, GCC2 in-band management SNC/I, SNC/N transmission protection |
M1H2 | 1*100G line side port (CFP) 1*100G(QSFP28) or 2*40G client ports (QSFP+)
| The signal of client side 100G (100GE or OTU4) is mapped to ODU4 The signal of client side 40G (40GE or OTU3) is mapped to ODU3 The signal of line side is terminated into ODU4 or ODU3 and then connect to the client side 100G signal of line side supports G.709 Regular FEC or Soft-Decision FEC GCC0, GCC1, GCC2 in-band management SNC/I, SNC/N transmission protection |
T4H | 2*100G line side ports (CFP) 2*100G client side ports (QSFP28) | The 100G signal of client side support 100GE or OTU4 Line side support transparent transmission of 100G signal of client side (100GE or OTU4) or multiplex to ODU4 to OTN transport (100GE or OTU4) Line side support coherent CFP, 4x25G DWDM CFP, or grey CFP application |
M2H20 | 1*100G/200G line side port (CFP2) 2*100G(QSFP28) or 4*40G client ports (QSFP+) or 20*(4x5) 10G client side ports | The 100G signal of client side (100GE or OTU4) is mapped to ODU4 The 40G signal of client side (40GE or OTU3) is mapped to ODU3 The 10G signal of client side 10G (10GE, STM-64/OC-192) is mapped to ODU2/2e The 100G signal of line side is s demux to ODU2/2e or ODU3 from ODU4, and then connect to the signal of client side The 200G signal of line side is demux to ODU4 from ODUC2, and demux to lower ODU2/2e or ODU3, and then connect to the client side G.709 regular FEC or Soft-Decision FEC 200G line side support Soft-Decision FEC 10G OTU2/2e support I.4 or I.7 EFEC, or G.709 regular FEC GCC0, GCC1, GCC2 in-band management SNC/I, SNC/N transmission protection |
T20X | 10*10G line side ports (SFP+) 10*10G client side ports (SFP+) | The signal of client side (10GE, STM-64/OC-192) is mapped to ODU2/2e The signal of line side is demux to ODU2/2e, and thenconnect to theclient side 10G OTU2/2e support I.4 or I.7 EFEC, or G.709 regular FEC GCC0, GCC1, GCC2 in-band management SNC/I, SNC/N transmission protection |
M2X16 | 2*10G line side ports (XFP) 16*2.5G low speed anyrate client side ports (SFP)
| The signal of client side (GE/FE, STM-1/4/16, OC-3/12/48 low speed signal) is mapped to ODU0 or ODU1 The signal of system side is demux to ODU0 or ODU1 from ODU2 and then connect to the client side 10G OTU2/2e support I.4 and I.7 EFEC, or G.709 regular FEC GCC0, GCC1, GCC2 in-band management SNC/I, SNC/N transmission protection |
The OTN service module can be inserted into slot 1 and slot 2.
The SI module is fixedly inserted into the slot.
The AC power supply module (occupy 2 slots) can be inserted into the slot 4 and slot 5, and the ODM module can also be inserted.
The AC power supply module (occupy 2 slots) can be inserted into the slot 6 and slot 7. The optical mux and demux module can also be inserted.
The DC power supply module are fixedly inserted into the slot 8 and slot 9.
The slot 10 is fixedly inserted into Fan module.
