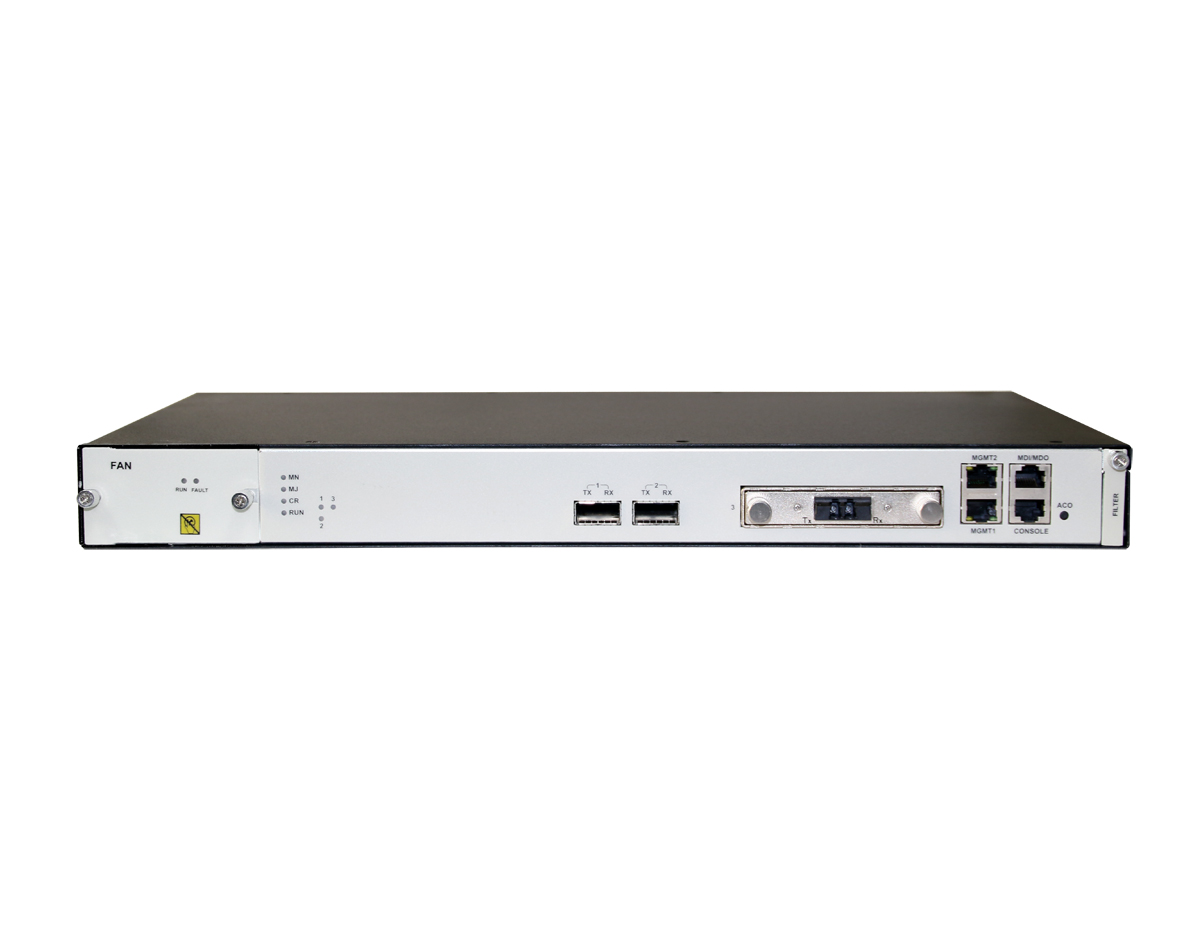

M1H2 is high density 1U height 100G OTN Muxponder with 1 port 100G line and 1 port 100G client or 2 ports 40G client, it adopts the advanced technology and ASIC chip, and it is fully compliant with ITU-T standard, such as G.709, G.798, etc. M1H2 is suitable for Metro Access and Metro Aggregation optical transport network.
Features | Description |
System Side Signal and Multiplexing Structure | 100G grey CFP: OTU4 <-> ODU4 100G grey CFP: OTU4 <-> ODU4 <-> ODU3 |
100G DWDM CFP: OCh <-> OTU4 <-> ODU4 100G DWDM CFP: OCh <-> OTU4 <-> ODU4 <-> ODU3 | |
Client Side Signal and Mapping Mode | 100GE <-> ODU4 |
OTU4 <-> ODU4 | |
40GE <-> ODU3 | |
OTU3 <-> ODU3 | |
FEC on 100G Port | 100G OTU4: G.709 Regular FEC |
100G coherent OCh: Soft-Decision FEC | |
In-band DCN Management | GCC0 on OTU4 |
GCC1 or GCC2 or GCC1+2 on ODU4 | |
GCC0 on OTU3 | |
GCC1 or GCC2 or GCC1+2 on ODU3 | |
Out-band DCN Management | Management Ethernet port |
Network Management System | SNMP based NMS |
