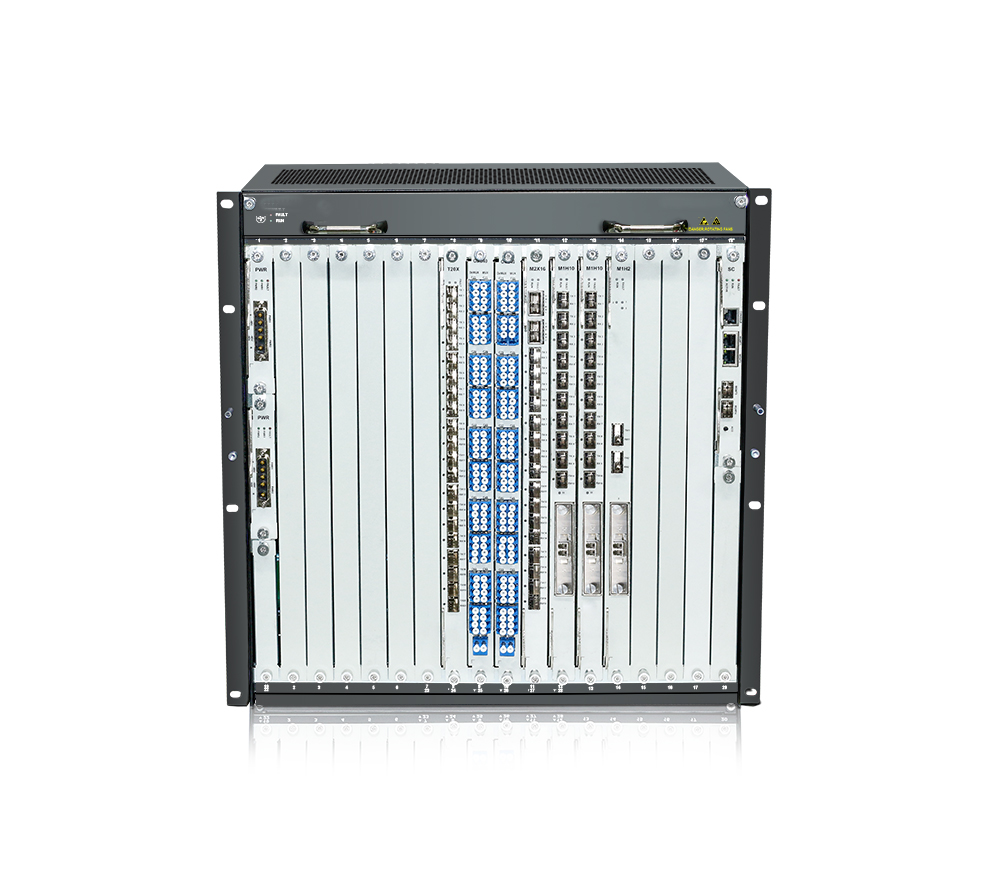

OTN2800-X is a new generation OTN/WDM transport platform. Adopting the advanced technology and ASIC chip, it is fully compliant with ITU-T standard, such as G.709, G.798, etc. OTN2800-X has 16 universal service slots, modular design enables any type of OTN card (100G, 40G, 10G, any-rate below 10G) and any type of CWDM and DWDM card. With high capacity and OTN2800-X and expansion ability, OTN2800-X is suitable for metro aggregation and long haul optical transport network.
Description Slot 1 ----------------- DC PWR (only) slot 19 ---------------- DC PWR (only) Slot 2~Slot 17 ------ Full slot OTN cards, DWDM cards Slot 18 ---------------- SC Card (only) Slot 20 ---------------- SC Card (only) Slot 21 ---------------- Fan Tray (only) Slot 22 ---------------- SI Interface (only)
| Description Slot 1 --------------- DC PWR (only) slot 19 -------------- DC PWR (only) Slot 2~Slot 6 ------ Full slot OTN cards, DWDM cards Slot 7~Slot 12 ---- Half slot OTN cards, DWDM cards Slot 13~Slot 17 --- Full slot OTN cards, DWDM cards Slot 23~Slot 28 --- Half slot OTN cards, DWDM cards Slot 18 --------------- SC Card (only) Slot 20 --------------- SC Card (only) Slot 21 --------------- Fan Tray (only) Slot 22 --------------- SI Interface (only) |
Full slot OTN / WDM card | OTN card: M2H20: 1 port 200G plus 20 port 10G Muxponder or 1 port 200G plus 5 port 40G H1L10: 1 port 100G plus 10 port 10G Muxponder M1H2: 1 port 100G line plus 1 port 100G client or 2 ports 40G client H2L16: 2 port 10G plus 16 port anyrate Muxponder T20X: 20 port 10G Transponder (10 port client, 10 port line) WDM card： OMD40: 40-channel DWDM Mux/De-Mux card OMD80: 40-channel DWDM Mux/De-Mux card WSS9: 9-degree ROADM DCM: 40km / 60km DCM card |
10U height, 19inch width chassis, 16 universal service slots, 2 redundant system controllers, and 2 redundant DC power suppliers
High density OTN cards:
（1）100G Muxponder card: 1 port 100G coherent line, 10 ports 10G or 2 ports 40G
（2）100G Transponder card: 1 port 100G coherent line, 1 port 100G client
（3）10G Transponder card: 10 port 10G
（4）10G Muxponder card: 2 port 10G, 16 port anyrate clients (FE/GE, STM-1/4/16/OC-3/12/48, FC-1/2/4, etc.)
CWDM, FOADM and ROADM supports with integrated EDFA module in the same card
Fully ITU-T compliant OTN functionality, such as mapping/de-mapping, multiplexing/de-multiplexing, SNC Protection, FEC, GCC, and other standard overhead processing as defined in ITU-T G.709
SNMP based Network Management System
