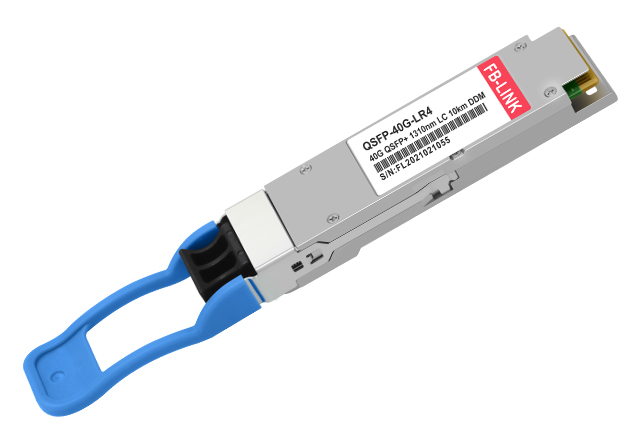

40G QSFP+ 1310nm 10km LR4

40G QSFP+ LR4 transceiver modules are designed for use in 40 Gigabit Ethernet links on up to 10km of Single mode fiber. They are compliant with the QSFP MSA and IEEE 802.3ba. The optical transceiver is RoHS compliant.

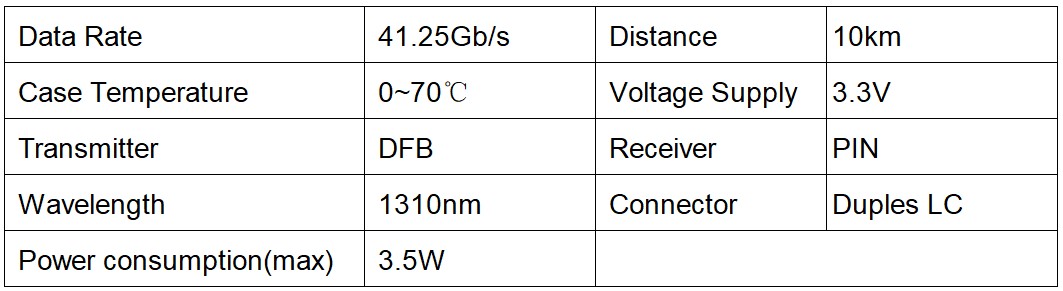

Parameters


Features

Hot-pluggable QSFP+ form factor

Supports 41.25Gb/s aggregate bit rate

Power dissipation <3.5W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 10km on single Mode Fiber (SMF)

Aligned with IEEE 802.ba

4x10G NRZ DFB-based 1310nm transmitter

4x10G NRZ retimed 40GAUI-4 electrical interface

Duplex LC receptacles

I2C management interface

RoHS compliant


Download
View the PDF
Consulting Quotation
Buy Now
