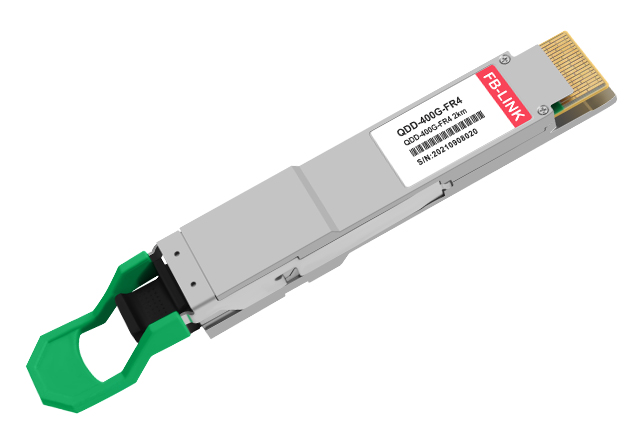

QDD 400G FR4 2km

400G FR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 2km of single mode fiber. They are compliant with the QSFP-DD MSA, QDD MSA, IEEE 802.3cu and and 100G Lambda MSA.The optical transceiver is RoHS compliant.

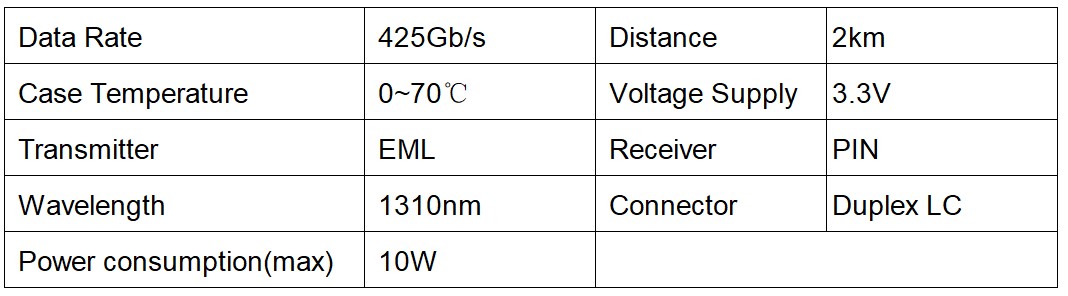

Parameters


Features

Hot-pluggable QSFP112 Type 2A form factor

Supports 425Gb/s aggregate bit rate

Power dissipation <10W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 2km on Single Mode Fiber (SMF)

Aligned with IEEE 802.cu

4x100G PAM4 EML-based CWDM transmitter

4x100G PAM4 retimed 400GAUI-4 electrical interface

Duplex LC receptacles

I2C management interface

RoHS compliant


Download
View the PDF
