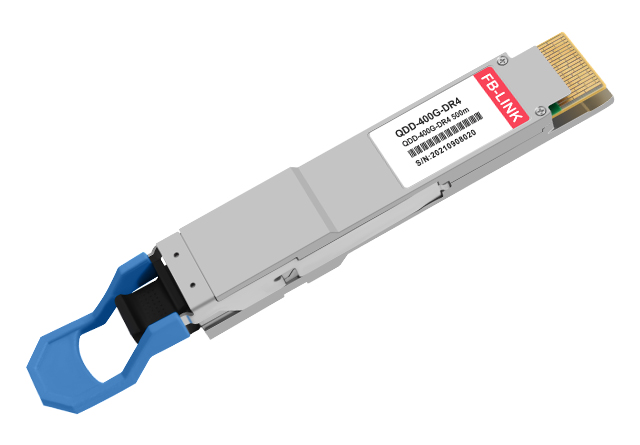

QDD 400G DR4 500M

400G QDD DR4 transceiver modules are designed for use in 400 Gigabit Ethernet links on up to 500m of single mode fiber. They are compliant with the QSFP-DD MSA, QSFP112 MSA, IEEE 802.3bs and and 100G Lambda MSA.The optical transceiver is RoHS compliant.

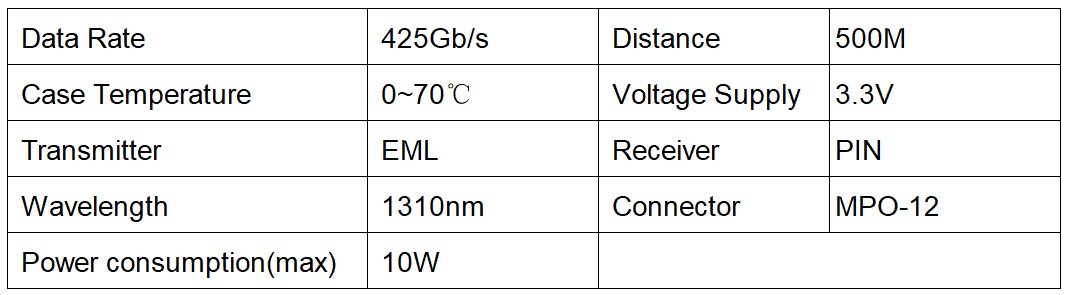

Parameters


Features

Hot-pluggable QSFP112 Type 2A form factor

Supports 425Gb/s aggregate bit rate

Power dissipation <10W

Commercial case temperature range of 0°C to 70°C

Single 3.3V power supply

Maximum link length of 500m on Single Mode Fiber (SMF)

Aligned with IEEE 802.bs

4x100G PAM4 EML-based 1310nm transmitter

4x100G PAM4 retimed 400GAUI-4 electrical interface

MPO-12 receptacles

I2C management interface

RoHS compliant
