2U Chassis

OTN8800 series products are new generation optical transmission platforms supporting high capacity,multi services connection. It bears advantages of high service integration, high terminal density,multi services,flexible configuration etc,it supports C/S graphic management interface based on SNMP protocol,showing clear bug position for maintenance team and saving maintenance cost.

OTN8800 platforms are widely used in Telcos,Broadcast & TV, Power grid,Education,Cloud computing, IT security. Catering for fully optical networks,they are applied in national/provincial/inter-city trunk lines.

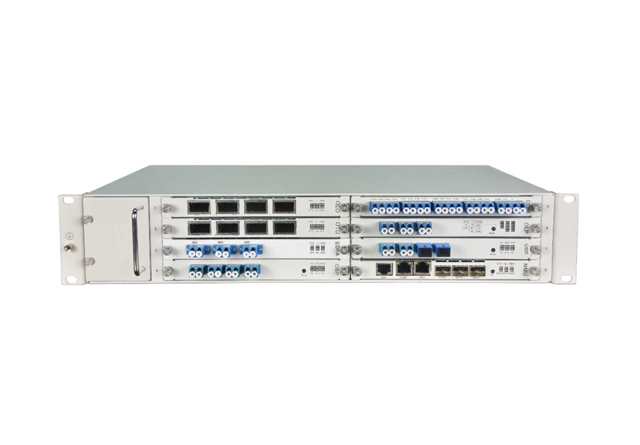

OTN8800-II is highly integrated,compact in size, it features standard 19” 2U chassis, power supply (AC/DC optional),1+1 backup,ready to install. 2U transmission platform supports max 8 services slots, mixed different interface modules (hot pluggable),in-band and out-of-band network management,flexible bandwidth per channel,remote update,easy maintenance.

Parameters

Description

Specification

Max capacity

4CH8CH16CH40CH

Wavelength

Compliant with ITU-T G.692ITU-T G.695

Service type

PDH EPONGPON
SDHSTM-1/STM-4/STM-16/STM-64/STM-256
SONETOC-3/OC-12/OC-48/OC-192/OC-768

FEGE10GE40GE100GECPRI 1~7POS

FICONESCONCATV

Optical terminal data rates

2R transmission,each channel 32M~111.81Gbit/s

3R transmission,each channel 155Mbit/s622Mbit/s1.25Gbit/s2.488Gbit/s4GFC8GFC10GFC11.3Gbit/s40Gbis/s100Gbis/s

Network topology

ChainStarRing

Fiber cable type

G.652   G.653not recommended  G.655

Network management type

CLINetRiverWeb

Dimension

482W× 89H× 285D)(mm

Ambient

Operating case temperature

-10℃ ~ 70℃

Storage temperature

-40℃ ~ 80℃

Relative humidity

5% ~ 95% non-frost

Power supply

220 V/AC 50Hz-48 V/DCoptional

Safety & EMC

Compliant with FCCULCETUVCSA

Power consumption

<200W


Features

Flexible networking,compact size,super scalability.

Works with CWDM/DWDM/EDFA/OLPS/OTAP multi interface modules.

Supports multi data rates on SDH/SONET/POS/EPON/GPON/CPRI/SAN/ETHERNET.

Supports singe fiber unilateral, single fiber bi-directional,dual fiber bi-directional chain/star/ring interconnection.

MSA compliant, works with single mode(1310nm/1550nm)、multi mode(850nm/1310nm)、RJ45、OADM,add/drop wavelength en route.

Supports SNMP uniform network management platform,CLI、Web、NetRiver.

Supports 1+1 power back up,hot pluggable, AC or DC.
