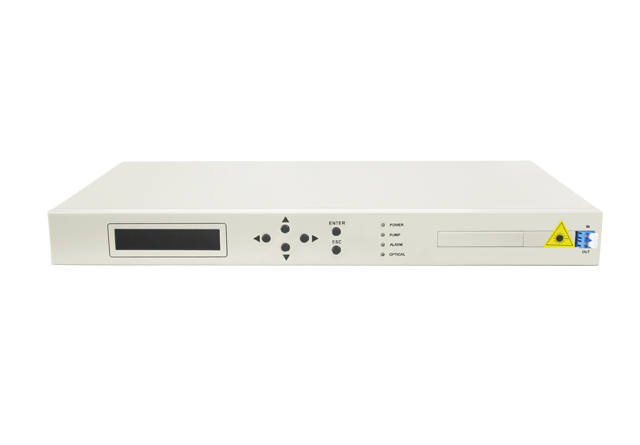

EDFA-LA Line Amplifier

Fiber amplifier technology is in the fiber core of the doped can produce laser rare earth elements, through the laser to provide DC excitation, so that through the optical signal to be amplified. The traditional optical fiber transmission system is the use of optical electrical optical regenerative repeater, the relay equipment affect the system's stability and reliability, to get rid of the conversion process directly in light path to amplify the signal transmission, instead of the regenerative repeater with an all-optical transmission repeater. For the equipment of erbium doped fiber amplifier (EDFA), praseodymium doped fiber amplifier (PDFA) and Nb doped fiber amplifier (NDFA). At present, the optical amplification technology is mainly used EDFA.

Parameters

Product Name

Line amplifierLA

Parameter

Min

Typ

Max

Unit

Operating Wavelength

16 Channel

1546

1550

1561

nm

32 Channel

1535


1562

48 Channel

1528


1568

Input power

-25


5

dBm

Gain

14

25

33


Output power



21

dBm

Gain flatness


0.6

1.5

dB

Input/output Isolation

30



dB

Output Pump leakage



-30

dBm

Input/output return loss

45



dB

polarization dependent loss



0.5

dB

Polarization mode dispersion



0.5

ps

Noise figure


5.0


dB

Operating Temperature

-5


55

Humidity

5


95

%

Storage Temperature

-40


85

power consumption



30

W

Power

-48V DC AND 220V AC

V

Interface

FC/UPC or others


Dimension

(W x L x H)  482.6x245x43.6

mm


Features

Access network

IP ATM SDH Network

Digital communication network

DWDM system
