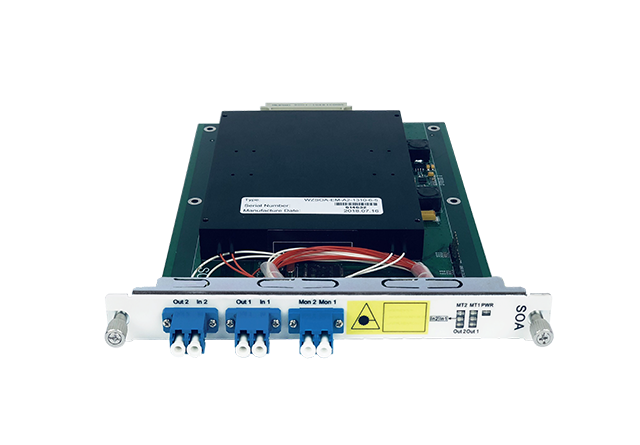

SOA amplification module is designed to amplify the O-band optical signals 1230nm~1360nm, it works with 100G/40G/10G data traffice. Each module can amplify max 4 channels of service signals,it can be applied in information system or data transmission system.
Description | Specification | |
Wavelength range | 1230nm~1360nm | |
Input range | -20dBm~+3dBm | |
Saturated output | +10dBm | |
Gain per channel | 12dB~20dB | |
Noise index | 7.5dB~8dB | |
Gain flatness | 2.0dB | |
Uniformity | 1.0dB | |
Stability | 0.5dB | |
Bias current | 300mA | |
Polarization-dependent gain | 2.0dB | |
Network management | CLI、NetRiver、Web | |
Dimension | 177 （W）× 20（H）× 225（D）（mm） | |
Ambient | Operating case temperature | -10℃ ~ 70℃ |
Storage temperature | -40℃ ~ 80℃ | |
Relative humidity | 5% ~ 95% non frost | |
Safety and EMC | Compliant with FCC、UL、CE、TUV、CSA | |
Power consumption | <24W | |
Optical amplification of O-band signals.
Applicable to 100G/40G/10G data rates.
Max saturated output +10dB, minimum input -20dB.
Unified SNMP network management platform,CLI、Web、NetRiver.
It can monitor:PUMP drive current、PUMP power output、PUMP switch、PUMP temperature、input power、output power、module temperature.
It can configure PUMP switch、 APC mode.
