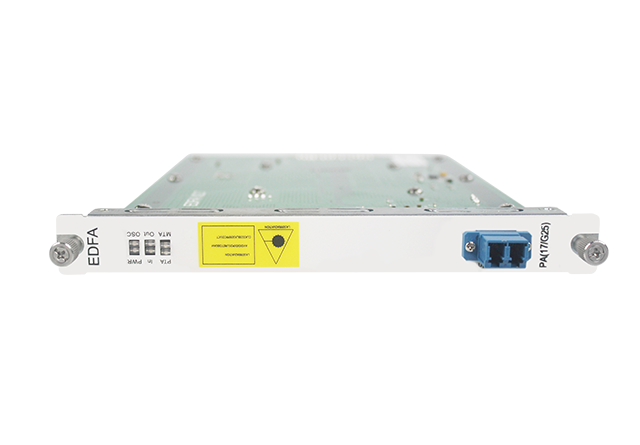

EDFA amplification module is designed to accompany with DCM for long-haul digital fiber optic transmission.Its core parts consist of reliable PUMP laser,unique APC (Automatic Power Control),ATC (Automatic Temperature Control) ,generating stable power output and great reliability.Sophisticated GFF（Gain Flat Filter）and advanced optical route design optimize the flatness and noise.
Description | Specification | |
Wavelength range | 1528nm~1565nm | |
Input range | -35dBm~+6dBm | |
Saturated output | +23dBm | |
Max gain | 30dB | |
Noise index | 4.5dB~6dB | |
Gain flatness | 1.0dB | |
Input/output isolation | 30dB | |
Input/out echo loss | 45dB | |
Output Pump leakage | -30dBm | |
Polarization-dependent loss | 0.5dB | |
Polarization mode dispersion | 0.5ps | |
Network management | CLI、NetRiver、Web | |
Dimension | 177 （W）× 20（H）× 225（D）（mm） | |
Ambient | Operating case temperature | -10℃ ~ 70℃ |
Storage temperature | -40℃ ~ 80℃ | |
Relative humidity | 5% ~ 95% non frost | |
Safety and EMC | Compliant with FCC、UL、CE、TUV、CSA | |
Power consumption | <30W | |
Supports optical amplification of C-band DWDM system.
Supports amplification of optional OSC signal input.
Max saturated output +23dB, Minimum input -35dB.
Booster amplification、Line amplification、Pre-amplification.
Unified SNMP network management platform,CLI、Web、NetRiver.
It can monitor:PUMP drive current、PUMP power output、PUMP switch、PUMP temperature、input power、output power、module temperature.
It can configure PUMP switch、AGC mode and APC mode.
Supports optical monitoring port（MON）.
