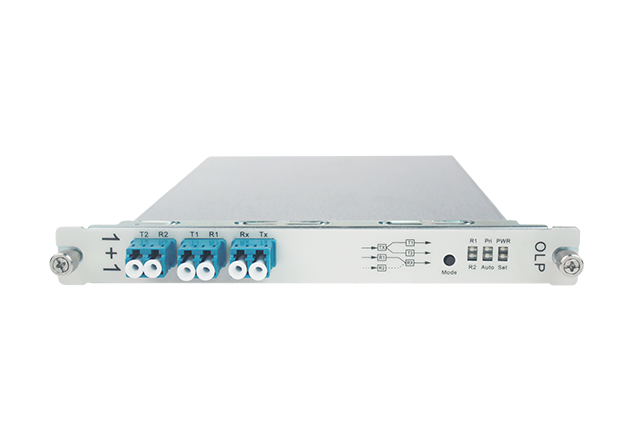

OLP Service Card(1+1&1:1)

OLP Optical Protection Board is a protection system developed by FB-LINK. for optical line backup. It adopts advanced optical path automatic switching module,which is an optical device used in optical fiber communication to switch optical paths.Automatically identify the signal states of the optical signals of the primary and backup optical systems, and perform instantaneous switching of the optical paths so as to protect the primary optical cable from full-impedance failure and protect the system from operating normally and

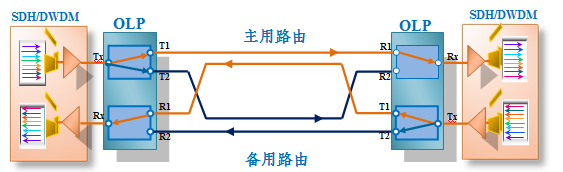

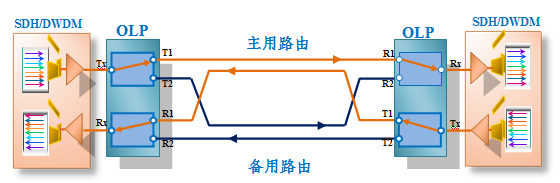

improve the service quality of operators. OLP optical line protection board is widely used in a variety of trunk main and backup protection and a variety of optical switching network. Its advantage is that optical signals can be directly converted into light in the use of optical circuits,small size, economic security, it is used in many optical transmission.The OLP1: 1 type protection board is designed for protection boards with low loss and redundancy in optical communication lines. The OLP1+1 type protection board uses the selective receiving and emitting mode to inject light into the backup line to monitor whether there is a fault on the backup line. When the working optical fiber occurs Fault, the receiver and the sender quickly switch to the standby fiber, to ensure unobstructed communication.

Parameters

Description

Specification


1+1 protection

1:1 protection

Working Wavelength

1310 + 50 nm or 1550 + 50 nm or double window

Insertion Loss

T1 (T2) →Tx

<3.8dB

< 1.2 dB

Rx →R1 (R2)

<1.2dB

< 1.3 dB

Return loss

> 45 dB

Crosstalk

55 dB

Wavelength dependent loss

< 0.1 dB@C or L Band

< 0.2 dB@C and L Band

Polarization-dependent loss

< 0.1 dB

Light intensity monitoring range

TX:-30 to +25 dBm  RX: -50 to 10 dBm

Monitor the accuracy of light intensity

± 0.5 dB

Monitoring the light intensity resolution

0.1 dB

Switching time

< 25ms

< 50ms

Switching type

Power down hold

Working life

1,000,000 cycles

Connector Type

LC/PCOr user defined

Dimensions (19 inch)

4U: 438mm (W) × 177 mm (H)× 350 mm(D)              1U:438mm (W) × 44 mm (H)× 350 mm(D)

Power waste

1U: < 15 W (Filled)              4U: < 80W (15 Insert disk)


Features

Support single-mode, multi-mode optical line protection.

Support 1 + 1 (dual sending and receiving) protection, 1: 1 (choose the election election) protection.

Support bi-fiber bidirectional and single fiber bidirectional protection.

Support automatic and manual work mode.

Support fiber monitoring

With a wide optical power monitoring range: -50dBm ~ + 23dBm.

With a short optical path protection switching time: ≤ 20ms.

Support power-down optical path state keeping function.

Support local and remote control and SNMP network management.


1+1


1:1
