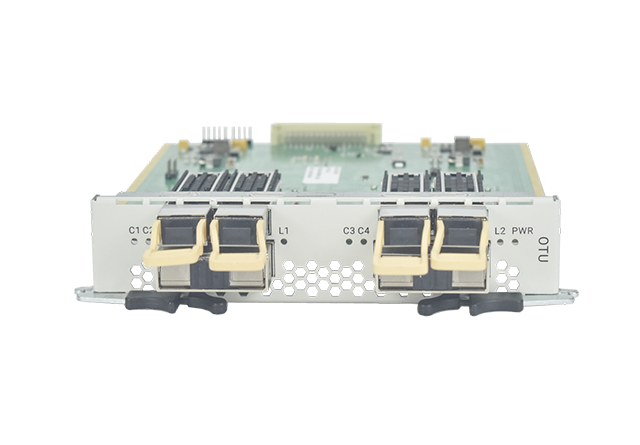

2 * 200G CFP2 service board is a 4 * 100G service access module developed by FB-LINK for optical fiber link. It can adjust the wavelength of CFP2 coherent optical module, convert it into DWDM standard wavelength optical signal, cooperate with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission, and provide a high-quality solution for transmission lines with shortage of optical fiber resources and large loss of optical fiber lines.
Index | Specification | |
Maximum capacity Of single system | 4 * 1OOG bidirectional transmission unidirectional transmission 4 * 1OOG | |
Tunable Wavelength range | DWDM:1529.16nm-1567.14nm(191.3THz-196.05THz) | |
Modulation mode | DP-QPSK@1OOG;DP-16QAM@200G;DP-16QAMps@200G;DP-QPSK@200G | |
Service access type | 100GE、OTU4 | |
Dispersion tolerance | ±40000ps/nm@1OOG | |
OSNR Tolerance | <12dB@1OOGQPSK;<21dB@200GDP-16QAM<16dB@200GDP-16QAMps; | |
Physical Dimension | 175(W)x40(H)x208(D)(mm) | |
Environmental requirements | Working | -10C-70 |
Storage | -40C-80 | |
Humidity | 5%-95% No condensation | |
Security and EMC | Comply with FCC、UL、CE、TUV、CSA standard | |
Power consumption | <78W | |
Support DWDM transmission, wavelength conversion
Single-board support 4 channels of 100G bidirectional or 4 channels of 100G unidirectional service access.
Line side support 2 channels of 200G CFP2 coherent optical module access.
Client side supports multiple service interface: 1OOGBASE-SR4/CWDM4/LR4/PSM4.
